以太坊智能合约 OPCODE 逆向之调试器篇
时间：2018/09/04
Remix调试器
Remix带有一个非常强大的Debugger，当我的调试器写到一半的时候，才发现了Remix自带调试器的强大之处，本文首先，对Remix的调试器进行介绍。
能调试的范围：
1. 在Remix上进行每一个操作(创建合约/调用合约/获取变量值)时，在执行成功后，都能在下方的控制界面点击DEBUG按钮进行调试

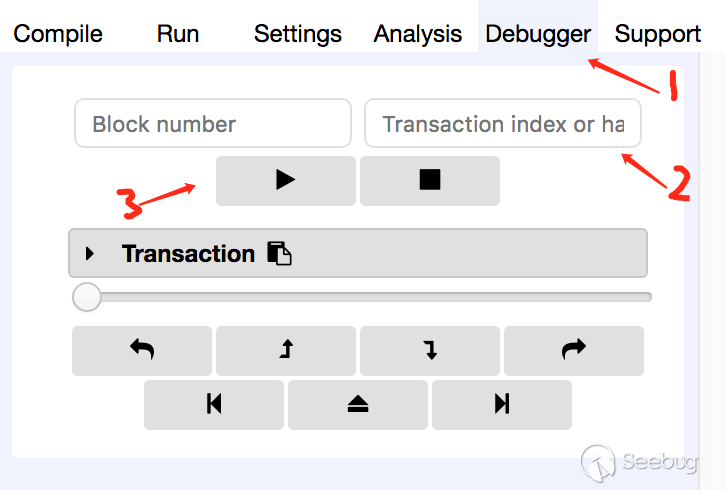

2. Debugger能对任意交易进行调试，只需要在调试窗口输入对应交易地址
3. 能对公链，测试链，私链上的任意交易进行调试
点击Environment可以对区块链环境进行设置，选择Injected Web3，环境取决去浏览器安装的插件
比如我，使用的浏览器是Chrome，安装的插件是MetaMask
通过MetaMask插件，我能选择环境为公链或者是测试链，或者是私链
当Environment设置为Web3 Provider可以自行添加以太坊区块链的RPC节点，一般是用于设置环境为私链
4. 在JavaScript的EVM环境中进行调试
见3中的图，把Environment设置为JavaScript VM则表示使用本地虚拟环境进行调试测试

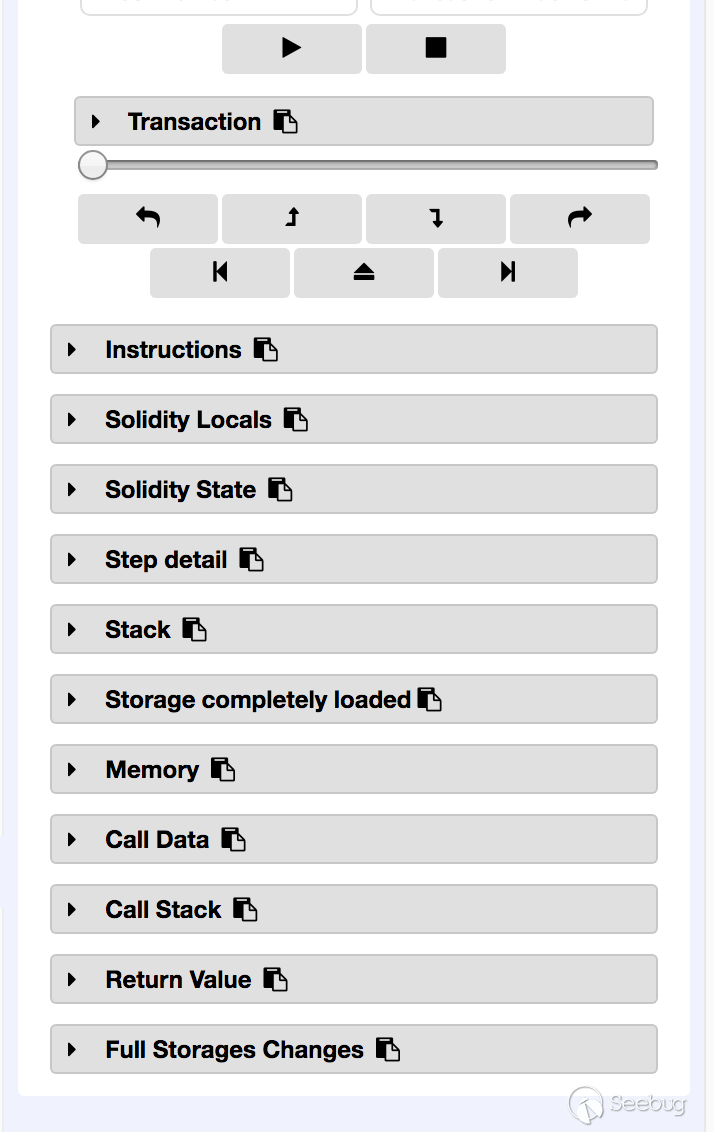

在调试的过程中能做什么？
Remix的调试器只提供了详细的数据查看功能，没法在特定的指令对STACK/MEM/STORAGE进行操作
在了解清楚Remix的调试器的功能后，感觉我进行了一半的工作好像是在重复造轮子。
之后仔细思考了我写调试器的初衷，今天的WCTF有一道以太坊智能合约的题目，因为第一次认真的逆向EVM的OPCODE，不熟练，一个下午还差一个函数没有逆向出来，然后比赛结束了，感觉有点遗憾，如果当时能动态调试，可能逆向的速度能更快。
Remix的调试器只能对已经发生的行为(交易)进行调试，所以并不能满足我打CTF的需求，所以对于我写的调试器，我转换了一下定位：调试没有源码，只有OPCODE的智能合约的逻辑，或者可以称为离线调试。
调试器的编写
智能合约调试器的编写，我认为最核心的部分是实现一个OPCODE解释器，或者说是自己实现一个EVM。
实现OPCODE解释器又分为两部分，1. 设计和实现数据储存器(把STACK/MEM/STORAGE统称为数据储存器)，2. 解析OPCODE指令
数据储存器
STACK
根据OPCODE指令的情况，EVM的栈和计算机的栈数据结构是一个样的，先入先出，都有PUSH和POP操作。不过EVM的栈还多了SWAP和DUP操作，栈交换和栈复制，如下所示，是我使用Python实现的EVM栈类:
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 |
<span class="token keyword">class</span> STACK<span class="token punctuation">(</span>Base<span class="token punctuation">)</span><span class="token punctuation">:</span> <span class="token string">""</span>" evm stack <span class="token string">""</span>" stack<span class="token punctuation">:</span> <span class="token punctuation">[</span>int<span class="token punctuation">]</span> max_value<span class="token punctuation">:</span> int <span class="token keyword">def</span> __init__<span class="token punctuation">(</span>self<span class="token punctuation">)</span><span class="token punctuation">:</span> self<span class="token punctuation">.</span>stack <span class="token operator">=</span> <span class="token punctuation">[</span><span class="token punctuation">]</span> self<span class="token punctuation">.</span>max_value <span class="token operator">=</span> <span class="token number">2</span><span class="token operator">*</span><span class="token operator">*</span><span class="token number">256</span> <span class="token keyword">def</span> push<span class="token punctuation">(</span>self<span class="token punctuation">,</span> data<span class="token punctuation">:</span> int<span class="token punctuation">)</span><span class="token punctuation">:</span> <span class="token string">""</span>" OPCODE<span class="token punctuation">:</span> PUSH <span class="token string">""</span>" self<span class="token punctuation">.</span>stack<span class="token punctuation">.</span>append<span class="token punctuation">(</span>data <span class="token operator">%</span> self<span class="token punctuation">.</span>max_value<span class="token punctuation">)</span> <span class="token keyword">def</span> pop<span class="token punctuation">(</span>self<span class="token punctuation">)</span> <span class="token operator">-</span>> <span class="token punctuation">(</span>int<span class="token punctuation">)</span><span class="token punctuation">:</span> <span class="token string">""</span>" OPCODE POP <span class="token string">""</span>" <span class="token keyword">return</span> self<span class="token punctuation">.</span>stack<span class="token punctuation">.</span>pop<span class="token punctuation">(</span><span class="token punctuation">)</span> @Base<span class="token punctuation">.</span>stackcheck <span class="token keyword">def</span> swap<span class="token punctuation">(</span>self<span class="token punctuation">,</span> n<span class="token punctuation">)</span><span class="token punctuation">:</span> <span class="token string">""</span>" OPCODE<span class="token punctuation">:</span> SWAPn<span class="token punctuation">(</span><span class="token number">1</span><span class="token operator">-</span><span class="token number">16</span><span class="token punctuation">)</span> <span class="token string">""</span>" tmp <span class="token operator">=</span> self<span class="token punctuation">.</span>stack<span class="token punctuation">[</span><span class="token operator">-</span>n<span class="token number">-1</span><span class="token punctuation">]</span> self<span class="token punctuation">.</span>stack<span class="token punctuation">[</span><span class="token operator">-</span>n<span class="token number">-1</span><span class="token punctuation">]</span> <span class="token operator">=</span> self<span class="token punctuation">.</span>stack<span class="token punctuation">[</span><span class="token operator">-</span><span class="token number">1</span><span class="token punctuation">]</span> self<span class="token punctuation">.</span>stack<span class="token punctuation">[</span><span class="token operator">-</span><span class="token number">1</span><span class="token punctuation">]</span> <span class="token operator">=</span> tmp @Base<span class="token punctuation">.</span>stackcheck <span class="token keyword">def</span> dup<span class="token punctuation">(</span>self<span class="token punctuation">,</span> n<span class="token punctuation">)</span><span class="token punctuation">:</span> <span class="token string">""</span>" OPCODE<span class="token punctuation">:</span> DUPn<span class="token punctuation">(</span><span class="token number">1</span><span class="token operator">-</span><span class="token number">16</span><span class="token punctuation">)</span> <span class="token string">""</span>" self<span class="token punctuation">.</span>stack<span class="token punctuation">.</span>append<span class="token punctuation">(</span>self<span class="token punctuation">.</span>stack<span class="token punctuation">[</span><span class="token operator">-</span>n<span class="token punctuation">]</span><span class="token punctuation">)</span> |
和计算机的栈比较，我觉得EVM的栈结构更像Python的List结构
计算机的栈是一个地址储存一个字节的数据，取值可以精确到一个字节，而EVM的栈是分块储存，每次PUSH占用一块，每次POP取出一块，每块最大能储存32字节的数据，也就是2^256-1，所以上述代码中，对每一个存入栈中的数据进行取余计算，保证栈中的数据小于2^256-1
MEM
EVM的内存的数据结构几乎和计算机内存的一样，一个地址储存一字节的数据。在EVM中，因为栈的结构，每块储存的数据最大为256bits，所以当OPCODE指令需要的参数长度可以大于256bits时，将会使用到内存
如下所示，是我使用Python实现的MEM内存类:
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 |
<span class="token keyword">class</span> MEM<span class="token punctuation">(</span>Base<span class="token punctuation">)</span><span class="token punctuation">:</span> <span class="token string">""</span>" EVM memory <span class="token string">""</span>" mem<span class="token punctuation">:</span> bytearray max_value<span class="token punctuation">:</span> int length<span class="token punctuation">:</span> int <span class="token keyword">def</span> __init__<span class="token punctuation">(</span>self<span class="token punctuation">)</span><span class="token punctuation">:</span> self<span class="token punctuation">.</span>mem <span class="token operator">=</span> bytearray<span class="token punctuation">(</span><span class="token number">0</span><span class="token punctuation">)</span> self<span class="token punctuation">.</span>max_value <span class="token operator">=</span> <span class="token number">2</span><span class="token operator">*</span><span class="token operator">*</span><span class="token number">256</span> self<span class="token punctuation">.</span>length <span class="token operator">=</span> <span class="token number">0</span> self<span class="token punctuation">.</span>extend<span class="token punctuation">(</span><span class="token number">1</span><span class="token punctuation">)</span> @Base<span class="token punctuation">.</span>memcheck <span class="token keyword">def</span> set<span class="token punctuation">(</span>self<span class="token punctuation">,</span> key<span class="token punctuation">:</span> int<span class="token punctuation">,</span> value<span class="token punctuation">:</span> int<span class="token punctuation">)</span><span class="token punctuation">:</span> <span class="token string">""</span>" OPCODE<span class="token punctuation">:</span> MSTORE <span class="token string">""</span>" value <span class="token operator">%</span><span class="token operator">=</span> self<span class="token punctuation">.</span>max self<span class="token punctuation">.</span>mem<span class="token punctuation">[</span>key<span class="token punctuation">:</span> key<span class="token operator">+</span><span class="token number">0x20</span><span class="token punctuation">]</span> <span class="token operator">=</span> value<span class="token punctuation">.</span>to_bytes<span class="token punctuation">(</span><span class="token number">0x20</span><span class="token punctuation">,</span> <span class="token string">"big"</span><span class="token punctuation">)</span> self<span class="token punctuation">.</span>length <span class="token operator">+</span><span class="token operator">=</span> <span class="token number">0x20</span> @Base<span class="token punctuation">.</span>memcheck <span class="token keyword">def</span> set_byte<span class="token punctuation">(</span>self<span class="token punctuation">,</span> key<span class="token punctuation">:</span> int<span class="token punctuation">,</span> value<span class="token punctuation">:</span> int<span class="token punctuation">)</span><span class="token punctuation">:</span> <span class="token string">""</span>" OPCODE<span class="token punctuation">:</span> MSTORE8 <span class="token string">""</span>" self<span class="token punctuation">.</span>mem<span class="token punctuation">[</span>key<span class="token punctuation">]</span> <span class="token operator">=</span> value <span class="token operator">&</span>amp<span class="token punctuation">;</span> <span class="token number">0xff</span> self<span class="token punctuation">.</span>length <span class="token operator">+</span><span class="token operator">=</span> length @Base<span class="token punctuation">.</span>memcheck <span class="token keyword">def</span> set_length<span class="token punctuation">(</span>self<span class="token punctuation">,</span> key<span class="token punctuation">:</span> int<span class="token punctuation">,</span> value<span class="token punctuation">:</span> int<span class="token punctuation">,</span> length<span class="token punctuation">:</span> int<span class="token punctuation">)</span><span class="token punctuation">:</span> <span class="token string">""</span>" OPCODE<span class="token punctuation">:</span> XXXXCOPY <span class="token string">""</span>" value <span class="token operator">%</span><span class="token operator">=</span> <span class="token punctuation">(</span><span class="token number">2</span><span class="token operator">*</span><span class="token operator">*</span><span class="token punctuation">(</span><span class="token number">8</span><span class="token operator">*</span>length<span class="token punctuation">)</span><span class="token punctuation">)</span> data <span class="token operator">=</span> value<span class="token punctuation">.</span>to_bytes<span class="token punctuation">(</span>length<span class="token punctuation">,</span> <span class="token string">"big"</span><span class="token punctuation">)</span> self<span class="token punctuation">.</span>mem<span class="token punctuation">[</span>key<span class="token punctuation">:</span> key<span class="token operator">+</span>length<span class="token punctuation">]</span> <span class="token operator">=</span> data self<span class="token punctuation">.</span>length <span class="token operator">+</span><span class="token operator">=</span> length @Base<span class="token punctuation">.</span>memcheck <span class="token keyword">def</span> get<span class="token punctuation">(</span>self<span class="token punctuation">,</span> key<span class="token punctuation">:</span> int<span class="token punctuation">)</span> <span class="token operator">-</span>> <span class="token punctuation">(</span>int<span class="token punctuation">)</span><span class="token punctuation">:</span> <span class="token string">""</span>" OPCODE<span class="token punctuation">:</span> MLOAD <span class="token keyword">return</span> uint256 <span class="token string">""</span>" <span class="token keyword">return</span> int<span class="token punctuation">.</span>from_bytes<span class="token punctuation">(</span>self<span class="token punctuation">.</span>mem<span class="token punctuation">[</span>key<span class="token punctuation">:</span> key<span class="token operator">+</span><span class="token number">0x20</span><span class="token punctuation">]</span><span class="token punctuation">,</span> <span class="token string">"big"</span><span class="token punctuation">,</span> signed<span class="token operator">=</span><span class="token boolean">False</span><span class="token punctuation">)</span> @Base<span class="token punctuation">.</span>memcheck <span class="token keyword">def</span> get_bytearray<span class="token punctuation">(</span>self<span class="token punctuation">,</span> key<span class="token punctuation">:</span> int<span class="token punctuation">)</span> <span class="token operator">-</span>> <span class="token punctuation">(</span>bytearray<span class="token punctuation">)</span><span class="token punctuation">:</span> <span class="token string">""</span>" OPCODE<span class="token punctuation">:</span> MLOAD <span class="token keyword">return</span> <span class="token number">32</span> byte array <span class="token string">""</span>" <span class="token keyword">return</span> self<span class="token punctuation">.</span>mem<span class="token punctuation">[</span>key<span class="token punctuation">:</span> key<span class="token operator">+</span><span class="token number">0x20</span><span class="token punctuation">]</span> @Base<span class="token punctuation">.</span>memcheck <span class="token keyword">def</span> get_bytes<span class="token punctuation">(</span>self<span class="token punctuation">,</span> key<span class="token punctuation">:</span> int<span class="token punctuation">)</span> <span class="token operator">-</span>> <span class="token punctuation">(</span>bytes<span class="token punctuation">)</span><span class="token punctuation">:</span> <span class="token string">""</span>" OPCODE<span class="token punctuation">:</span> MLOAD <span class="token keyword">return</span> <span class="token number">32</span> bytes <span class="token string">""</span>" <span class="token keyword">return</span> bytes<span class="token punctuation">(</span>self<span class="token punctuation">.</span>mem<span class="token punctuation">[</span>key<span class="token punctuation">:</span> key<span class="token operator">+</span><span class="token number">0x20</span><span class="token punctuation">]</span><span class="token punctuation">)</span> @Base<span class="token punctuation">.</span>memcheck <span class="token keyword">def</span> get_length<span class="token punctuation">(</span>self<span class="token punctuation">,</span> key<span class="token punctuation">:</span>int <span class="token punctuation">,</span> length<span class="token punctuation">:</span> int<span class="token punctuation">)</span> <span class="token operator">-</span>> <span class="token punctuation">(</span>int<span class="token punctuation">)</span><span class="token punctuation">:</span> <span class="token string">""</span>" <span class="token keyword">return</span> mem int value <span class="token string">""</span>" <span class="token keyword">return</span> int<span class="token punctuation">.</span>from_bytes<span class="token punctuation">(</span>self<span class="token punctuation">.</span>mem<span class="token punctuation">[</span>key<span class="token punctuation">:</span> key<span class="token operator">+</span>length<span class="token punctuation">]</span><span class="token punctuation">,</span> <span class="token string">"big"</span><span class="token punctuation">,</span> signed<span class="token operator">=</span><span class="token boolean">False</span><span class="token punctuation">)</span> @Base<span class="token punctuation">.</span>memcheck <span class="token keyword">def</span> get_length_bytes<span class="token punctuation">(</span>self<span class="token punctuation">,</span> key<span class="token punctuation">:</span>int <span class="token punctuation">,</span> length<span class="token punctuation">:</span> int<span class="token punctuation">)</span> <span class="token operator">-</span>> <span class="token punctuation">(</span>bytes<span class="token punctuation">)</span><span class="token punctuation">:</span> <span class="token string">""</span>" <span class="token keyword">return</span> mem bytes value <span class="token string">""</span>" <span class="token keyword">return</span> bytes<span class="token punctuation">(</span>self<span class="token punctuation">.</span>mem<span class="token punctuation">[</span>key<span class="token punctuation">:</span> key<span class="token operator">+</span>length<span class="token punctuation">]</span><span class="token punctuation">)</span> @Base<span class="token punctuation">.</span>memcheck <span class="token keyword">def</span> get_length_bytearray<span class="token punctuation">(</span>self<span class="token punctuation">,</span> key<span class="token punctuation">:</span>int <span class="token punctuation">,</span> length<span class="token punctuation">:</span> int<span class="token punctuation">)</span> <span class="token operator">-</span>> <span class="token punctuation">(</span>bytearray<span class="token punctuation">)</span><span class="token punctuation">:</span> <span class="token string">""</span>" <span class="token keyword">return</span> mem int value <span class="token string">""</span>" <span class="token keyword">return</span> self<span class="token punctuation">.</span>mem<span class="token punctuation">[</span>key<span class="token punctuation">:</span> key<span class="token operator">+</span>length<span class="token punctuation">]</span> <span class="token keyword">def</span> extend<span class="token punctuation">(</span>self<span class="token punctuation">,</span> num<span class="token punctuation">:</span> int<span class="token punctuation">)</span><span class="token punctuation">:</span> <span class="token string">""</span>" extend mem space <span class="token string">""</span>" self<span class="token punctuation">.</span>mem<span class="token punctuation">.</span>extend<span class="token punctuation">(</span>bytearray<span class="token punctuation">(</span><span class="token number">256</span><span class="token operator">*</span>num<span class="token punctuation">)</span><span class="token punctuation">)</span> |
使用python3中的bytearray类型作为MEM的结构，默认初始化256B的内存空间，因为有一个OPCODE是MSIZE:
Get the size of active memory in bytes.
所以每次设置内存值时，都要计算active memory的size
内存相关设置的指令分为三类
- MSTORE, 储存0x20字节长度的数据到内存中
- MSTORE8, 储存1字节长度的数据到内存中
- CALLDATACOPY(或者其他类似指令)，储存指定字节长度的数据到内存中
所以对应的设置了3个不同的储存数据到内存中的函数。获取内存数据的类似。
STORAGE
EVM的STORAGE的数据结构和计算机的磁盘储存结构相差就很大了，STORAGE是用来储存全局变量的，全局变量的数据结构我在上一篇文章中分析过，所以在用Python实现中，我把STORAGE定义为了字典，相关代码如下:
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 |
<span class="token keyword">class</span> STORAGE<span class="token punctuation">(</span>Base<span class="token punctuation">)</span><span class="token punctuation">:</span> <span class="token string">""</span>" EVM storage <span class="token string">""</span>" storage<span class="token punctuation">:</span> <span class="token punctuation">{</span>str<span class="token punctuation">:</span> int<span class="token punctuation">}</span> max<span class="token punctuation">:</span> int <span class="token keyword">def</span> __init__<span class="token punctuation">(</span>self<span class="token punctuation">,</span> data<span class="token punctuation">)</span><span class="token punctuation">:</span> self<span class="token punctuation">.</span>storage <span class="token operator">=</span> data self<span class="token punctuation">.</span>max <span class="token operator">=</span> <span class="token number">2</span><span class="token operator">*</span><span class="token operator">*</span><span class="token number">256</span> @Base<span class="token punctuation">.</span>storagecheck <span class="token keyword">def</span> set<span class="token punctuation">(</span>self<span class="token punctuation">,</span> key<span class="token punctuation">:</span> str<span class="token punctuation">,</span> value<span class="token punctuation">:</span> int<span class="token punctuation">)</span><span class="token punctuation">:</span> self<span class="token punctuation">.</span>storage<span class="token punctuation">[</span>key<span class="token punctuation">]</span> <span class="token operator">=</span> value <span class="token operator">%</span> self<span class="token punctuation">.</span>max @Base<span class="token punctuation">.</span>storagecheck <span class="token keyword">def</span> get<span class="token punctuation">(</span>self<span class="token punctuation">,</span> key<span class="token punctuation">:</span> str<span class="token punctuation">)</span> <span class="token operator">-</span>> <span class="token punctuation">(</span>int<span class="token punctuation">)</span><span class="token punctuation">:</span> <span class="token keyword">return</span> self<span class="token punctuation">.</span>storage<span class="token punctuation">[</span>key<span class="token punctuation">]</span> |
因为EVM中操作STORAGE的相关指令只有SSTORE和SLOAD，所以使用python的dict类型作为STORAGE的结构最为合适
解析OPCODE指令
对于OPCODE指令的解析难度不是很大，指令只占一个字节，所以EVM的指令最多也就256个指令(0x00-0xff)，但是有很多都是处于UNUSE，所以以后智能合约增加新指令后，调试器也要进行更新，因此现在写的代码需要具备可扩展性。虽然解析指令的难度不大，但是仍然是个体力活，下面先来看看OPCODE的分类
OPCODE分类
在以太坊官方黄皮书中，对OPCODE进行了相应的分类:
0s: Stop and Arithmetic Operations (从0x00-0x0f的指令类型是STOP指令加上算术指令)
10s: Comparison & Bitwise Logic Operations (0x10-0x1f的指令是比较指令和比特位逻辑指令)
20s: SHA3 (目前0x20-0x2f只有一个SHA3指令)
30s: Environmental Information (0x30-0x3f是获取环境信息的指令)
40s: Block Information (0x40-0x4f是获取区块信息的指令)
50s: Stack, Memory, Storage and Flow Operations (0x40-0x4f是获取栈、内存、储存信息的指令和流指令(跳转指令))
60s & 70s: Push Operations (0x60-0x7f是32个PUSH指令，PUSH1-PUSH32)
80s: Duplication Operations (0x80-0x8f属于DUP1-DUP16指令)
90s: Exchange Operations (0x90-0x9f属于SWAP1-SWAP16指令)
a0s: Logging Operations (0xa0-0xa4属于LOG0-LOG4指令)
f0s: System operations (0xf0-0xff属于系统操作指令)
设计可扩展的解释器
首先，设计一个字节和指令的映射表:
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 |
import typing class OpCode(typing.NamedTuple): name: str removed: int # 参数个数 args: int # PUSH根据该参数获取opcode之后args字节的值作为PUSH的参数 _OPCODES = { '00': OpCode(name = 'STOP', removed = 0, args = 0), ...... } for i in range(96, 128): _OPCODES[hex(i)[2:]] = OpCode(name='PUSH' + str(i - 95), removed=0, args=i-95) ...... # 因为编译器优化的问题，OPCODE中会出现许多执行不到的，UNUSE的指令，为防止解析失败，还要对UNUSE的进行处理 for i in range(0, 256): if not _OPCODES.get(hex(i)[2:].zfill(2)): _OPCODES[hex(i)[2:].zfill(2)] = OpCode('UNUSE', 0, 0) |
然后就是设计一个解释器类:
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 |
<span class="token keyword">class</span> Interpreter<span class="token punctuation">:</span> <span class="token string">""</span>" EVM Interpreter <span class="token string">""</span>" MAX <span class="token operator">=</span> <span class="token number">2</span><span class="token operator">*</span><span class="token operator">*</span><span class="token number">256</span> over <span class="token operator">=</span> <span class="token number">1</span> store<span class="token punctuation">:</span> EVMIO <span class="token comment">############# </span> <span class="token comment"># 0s: Stop and Arithmetic Operations </span> <span class="token comment">############# </span> @staticmethod <span class="token keyword">def</span> STOP<span class="token punctuation">(</span><span class="token punctuation">)</span><span class="token punctuation">:</span> <span class="token string">""</span>" OPCODE<span class="token punctuation">:</span> <span class="token number">0x00</span> <span class="token string">""</span>" Interpreter<span class="token punctuation">.</span>over <span class="token operator">=</span> <span class="token number">1</span> <span class="token keyword">print</span><span class="token punctuation">(</span><span class="token string">"========Program STOP========="</span><span class="token punctuation">)</span> @staticmethod <span class="token keyword">def</span> ADD<span class="token punctuation">(</span>x<span class="token punctuation">:</span>int<span class="token punctuation">,</span> y<span class="token punctuation">:</span>int<span class="token punctuation">)</span><span class="token punctuation">:</span> <span class="token string">""</span>" OPCODE<span class="token punctuation">:</span> <span class="token number">0x01</span> <span class="token string">""</span>" r <span class="token operator">=</span> <span class="token punctuation">(</span>x <span class="token operator">+</span> y<span class="token punctuation">)</span> <span class="token operator">%</span> Interpreter<span class="token punctuation">.</span>MAX Interpreter<span class="token punctuation">.</span>store<span class="token punctuation">.</span>stack<span class="token punctuation">.</span>push<span class="token punctuation">(</span>r<span class="token punctuation">)</span> <span class="token punctuation">.</span><span class="token punctuation">.</span><span class="token punctuation">.</span><span class="token punctuation">.</span><span class="token punctuation">.</span><span class="token punctuation">.</span> |
- MAX变量用来控制计算的结果在256bits的范围内
- over变量用来标识程序是否执行结束
- store用来访问runtime变量: STACK, MEM, STORAGE
在这种设计模式下，当解释响应的OPCODE，可以直接使用
|
1 2 |
args = [stack.pop() for _ in OpCode.removed] getattr(Interpreter, OpCode.name)(*args) |
特殊指令的处理思路
在OPCODE中有几类特殊的指令:
1. 获取区块信息的指令，比如:
NUMBER: Get the block’s number
该指令是获取当前交易打包进的区块的区块数(区块高度)，解决这个指令有几种方案:
- 设置默认值
- 设置一个配置文件，在配置文件中设置该指令的返回值
- 调试者手动利用调试器设置该值
- 设置RPC地址，从区块链中获取该值
文章的开头提过了对我编写的调试器的定位问题，也正是因为遇到该类的指令，才去思考调试器的定位。既然已经打包进了区块，说明是有交易地址的，既然有交易地址，那完全可以使用Remix的调试器进行调试。
所以对我编写的调试器有了离线调试器的定位，采用上述方法中的前三个方法，优先级由高到低分别是，手动设置>配置文件设置>默认设置
2. 获取环境信息指令，比如:
ADDRESS: Get address of currently executing account.
获取当前合约的地址，解决方案如下:
- 设置默认值
- 设置一个配置文件，在配置文件中设置该指令的返回值
- 调试者手动利用调试器设置该值
获取环境信息的指令，因为调试的是OPCODE，没有源码，不需要部署，所以是没法通过RPC获取到的，只能由调试者手动设置
3. 日志指令
LOG0-LOG4: Append log record with no topics.
把日志信息添加到交易的回执单中
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 |
> eth.getTransactionReceipt("0xe32b3751a3016e6fa5644e59cd3b5072f33f27f10242c74980409b637dbb3bdc") { blockHash: "0x04b838576b0c3e44ece7279b3b709e336a58be5786a83a6cf27b4173ce317ad3", blockNumber: 6068600, contractAddress: null, cumulativeGasUsed: 7171992, from: "0x915d631d71efb2b20ad1773728f12f76eeeeee23", gasUsed: 81100, logs: [], logsBloom: "0x00000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000", status: "0x1", to: "0xd1ceeeefa68a6af0a5f6046132d986066c7f9426", transactionHash: "0xe32b3751a3016e6fa5644e59cd3b5072f33f27f10242c74980409b637dbb3bdc", transactionIndex: 150 } |
上述就是获取一个交易的回执单，其中有一个logs列表，就是用来储存日志信息
既然是在调试OPCODE，那么记录日志的操作就是没有必要的，因为调试的过程中能看到储存器/参数的情况，所以对于这类指令的操作，完全可以直接输出，或者不做任何处理(直接pass)
4. 系统操作指令
这类指令主要是外部调用相关的指令，比如可以创建合约的CREATE, 比如能调用其他合约的CALL, 比如销毁自身，并把余额全部转给别人的SELFDESTRUCT
这类的指令我认为的解决办法只有: 调试者手动利用调试器设置该指令的返回值
调用这类函数的时候，我们完全能看到详细的参数值，所以完全可以手动的进行创建合约，调用合约等操作
总结
在完成一个OPCODE的解释器后，一个调试器就算完成了3/4, 剩下的工作就是实现自己想实现的调试器功能，比如下断点，查看栈内存储存数据等

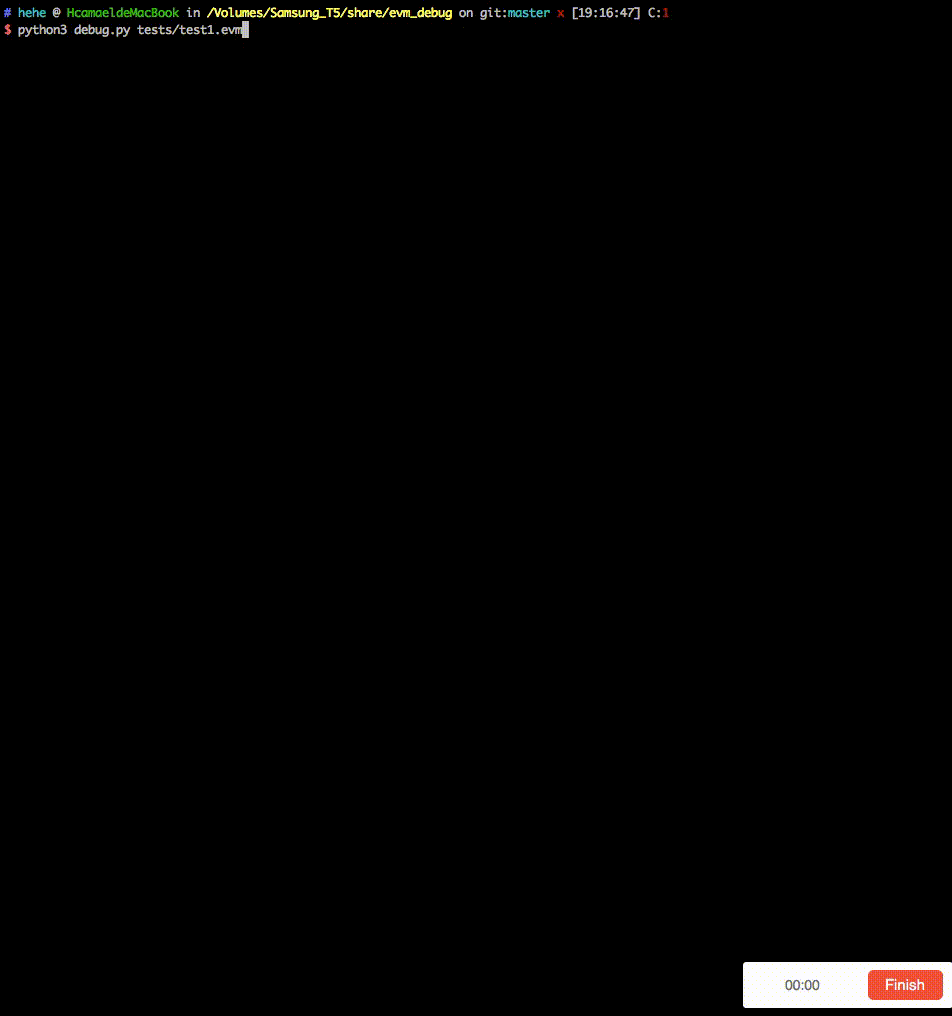

下面放一个接近成品的演示gif图:
